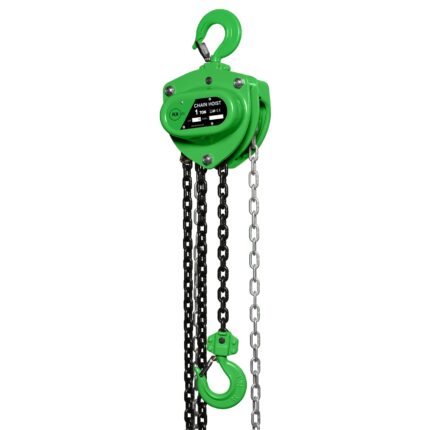

Specification: • complies with the Machinery Directive 2006/42/EC and standard EN 13157 • maintenance friendly design, brake and transmission are easy to access • the transmission is supported by high-quality cylindrical roller bearings with cage • precision machined shafts, chain sprocket and gears ensure smooth operation • robust high strength casing, double lacquered, withstands external impacts without damaging the bearings and provides protection against dust and water • ergonomic lever with rubber sleeve • optimized load chain guidance system. Features: • hooks: drop-forged steel hooks with cast latch • load chain: galvanized acc. to EN 818-7 (type T) • working temperature: -10°C up to 60°C • ATEX zone: not suitable • load type: goods, not suitable for lifting people Additional features: • overload protection: installation possibility • brake system: automatic safety load brake with integrated two sintered friction discs and ratchet disc and two pawl • possibility of installing mobile end ring (chain shortening clutch) Premium features: • enhanced compact housing and smaller lever -> reduced weight and easier handling and operating • enhanced gear and axle bearings -> increased stability and effectiveness during operation • improved cylindrical roller bearings with a cage -> better corrosion resistance • enhanced brake system, integrated sintered friction discs and ratchet disc -> increased efficiency and durability of the brake system, easier disassembly • enhanced cast steel hand wheel -> hand wheel of increased strength and reliability allows free spooling mode • no minimum preload required to activate ratchet mechanism • the hooks contain reference measuring points for controlling the dimensions of the hook opening -> easier control of the condition (deformation) and correctness of the hook, increased safety

Specification: • complies with the Machinery Directive 2006/42/EC and standard EN 13157 • maintenance friendly design, brake and transmission are easy to access • the transmission is supported by high-quality bearings • precision machined shafts, chain sprocket and gears ensure smooth operation • robust high strength casing, double lacquered (RAL 9011), withstands external impacts without damaging the bearings and provides protection against dust and water • for entertainment industry ( stage etc.) Features: • hooks: drop-forged steel hooks with cast latch • load chain: black acc. to EN 818-7 (type T) • hand chain: black • working temperature: -10°C up to 60°C • ATEX zone: not suitable • load type: goods, not suitable for lifting people • chain bag Additional features: • overload protection: no (possible installation) • brake system: automatic safety load brake with twin friction discs and pawls • possibility of installing compatible beam clamp type JG RAL 9011 • using with endless wire rope sling with polyester protections sleeve RAL 9011
